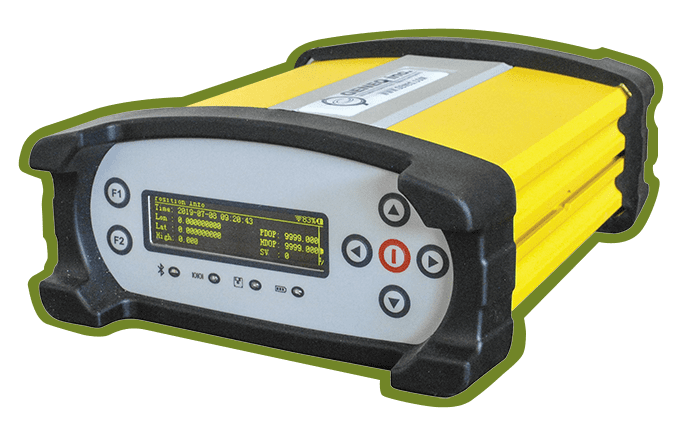

NET20 base station

A permanent GNSS reference station (CORS) for harsh environments. Install it once and it sends RTK corrections to every rover within 20 to 50 km, so your team no longer pays for a correction subscription. It suits farms, construction sites, machine control, utilities, or anyone who wants their own correction service with control over who uses it.

NET20 base station

555channels, L1 L2 L5
20–50 kmRTK coverage
32 GBlogs observations up to 5 Hz
NTRIPcaster software included

Features​

  • GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS
  • Corrections over your local network (LAN) or by UHF radio, in RTCM 3.x and CMR+ (the latter for older software and receivers)
  • Web interface over Wi-Fi or Ethernet for set-up, status, updates, logging and downloads
  • Linux based; user access control for your own correction service
  • Magnesium-reinforced housing that withstands rain, sand, dust and temporary immersion; low power and a wide temperature range
  • Works with rovers of any make, and pairs naturally with the SXblue Platinum

In the box​

Multi-GNSS geodetic antenna (L1, L2, L5, L-band), 4G LTE antenna, DB-9 serial cable, LEMO 7-pin USB cable, 35 m antenna cable, 3 m Ethernet cable and a 110/220 V power cable. Talk to us about the mounting and installation your site needs.

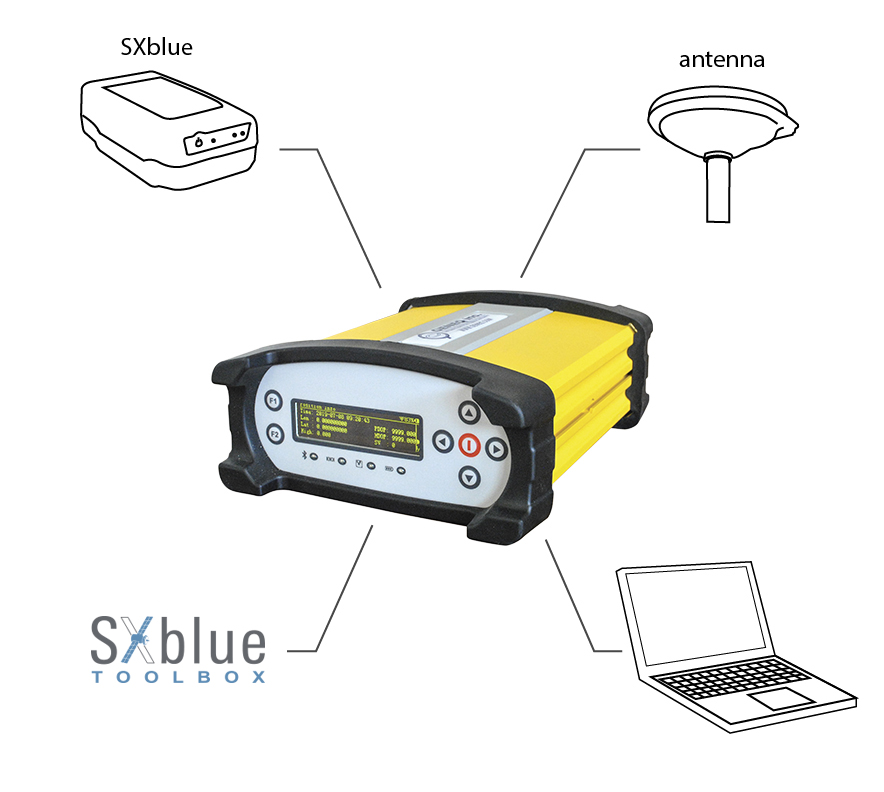

NET20 included accessories

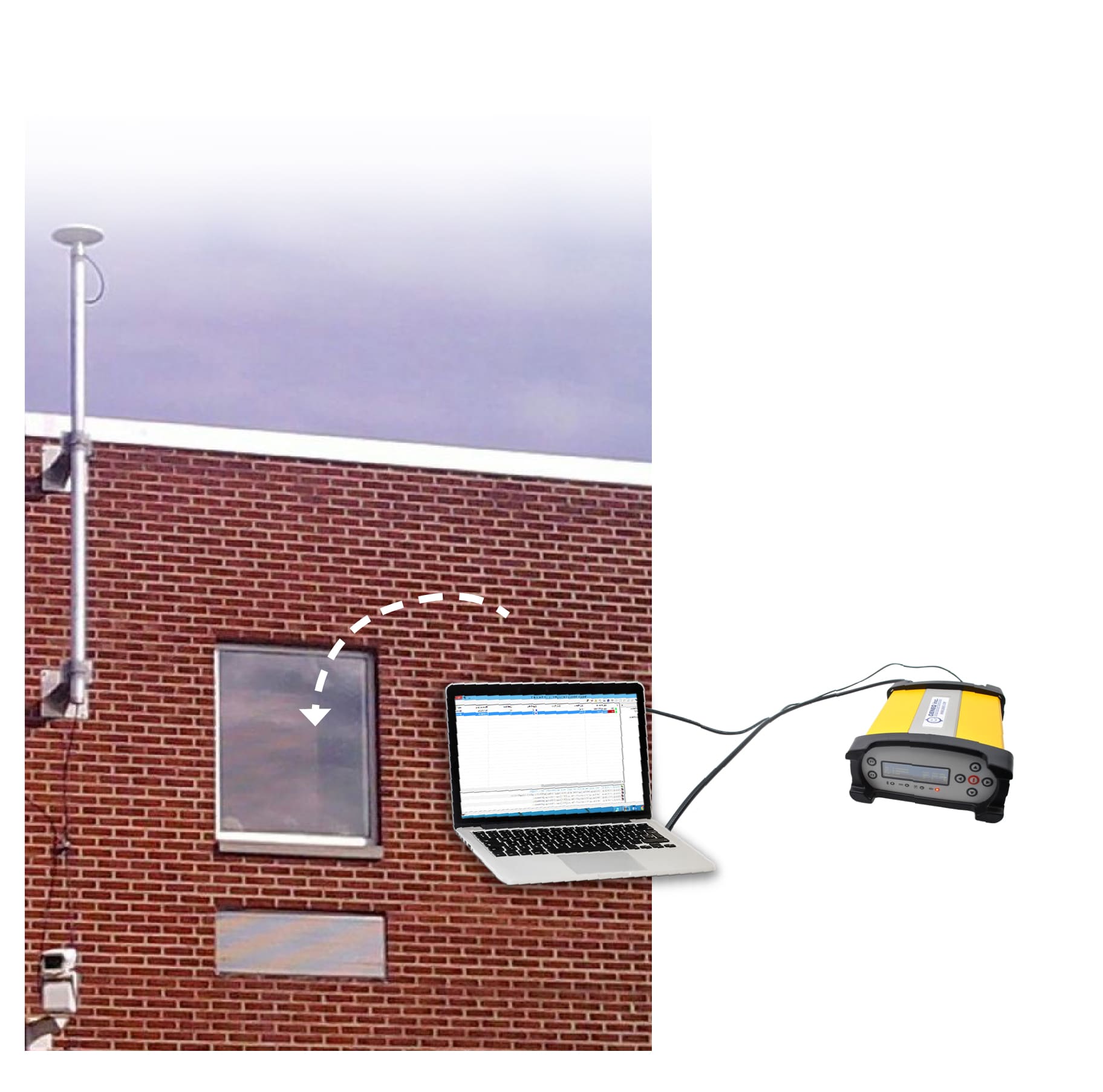

A NET20 installation

Data sheet, user manual and the RINEX converter are on the manufacturer's NET20 page.

Interested in the NET20 base station? We are Geneq's authorised distributor in the UK and can advise on the right kit, accessories and correction service for your work. Email us for a quote or see how to reach us.
