SXblue SMART

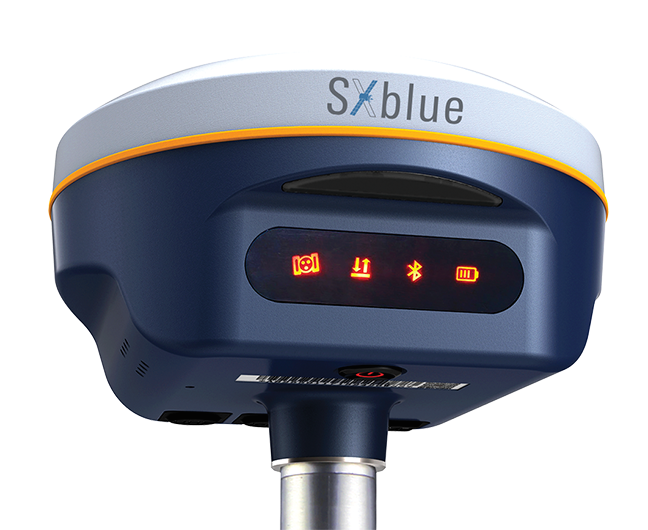

A rugged, versatile multi-band GNSS RTK receiver with tilt correction. Its 965 channels track every constellation, and a built-in IMU corrects the position for the tilt of the pole, up to 60°, so you can stake out points without levelling the bubble.

SXblue SMART

965channels, full constellation
60°automatic tilt correction
15 h+6800 mAh built-in battery
IP684G and UHF built in

Features​

  • Built-in UHF transceiver, 410 to 470 MHz, compatible with TrimTalk 450S, TrimMark 3, South, CHC, Satel and Hi-Target radios
  • Farlink protocol: range up to 15 km and 60% less power for data than a typical RTK radio
  • 4G modem for NTRIP corrections
  • Works as a rover (NTRIP or UHF) or as a base (UHF, RTCM and CMR+)
  • Internal memory for raw and RINEX data, for post-processing (OPUS, CSRS-PPP)
  • Status lights, dual speakers and voice prompts

In the box​

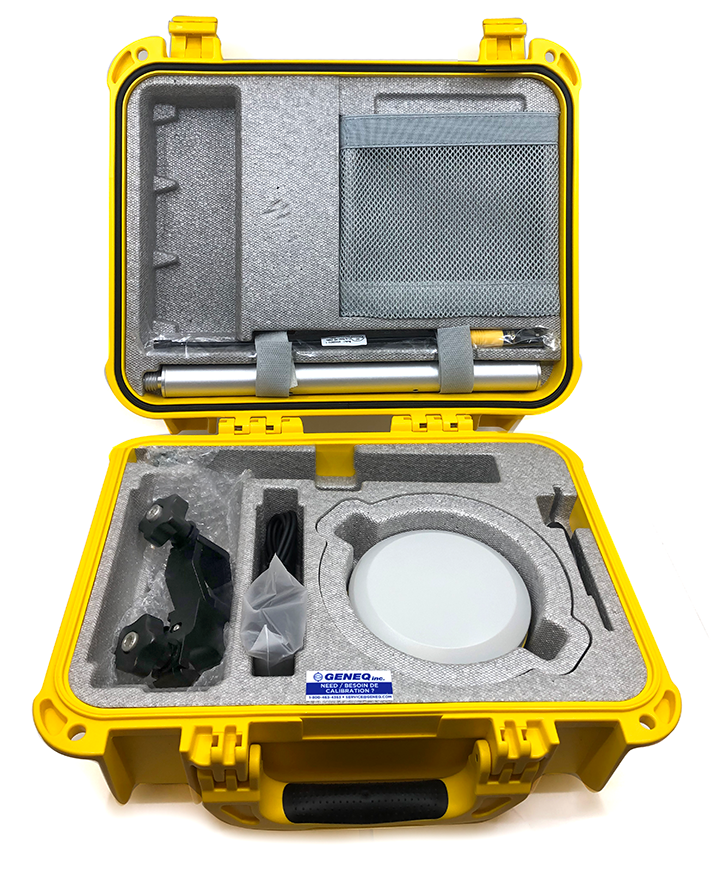

Rugged carrying case, UHF antenna (410 to 470 MHz) and a pole attachment for your data device, with space in the case for your controller.

SXblue SMART accessories

Compatible platforms

Questions​

Can it be used as a base? Yes. As a base it sends RTK corrections over UHF in RTCM and CMR+; as a rover it receives them over NTRIP or UHF.

Can it record RINEX or raw data? Yes, to its internal memory, for export and post-processing.

Data sheet and specifications are on the manufacturer's SMART page.

Interested in the SXblue SMART? We are Geneq's authorised distributor in the UK and can advise on the right kit, accessories and correction service for your work. Email us for a quote or see how to reach us.
