A90 GNSS-RTK Smart Antenna

A receiver and antenna in one very light, compact unit, with its connectivity built in and a web interface to manage it. Two hot-swappable smart batteries keep it running for up to 10 hours, and it holds a good solution even under partial vegetation cover. It replaces the earlier F90 and F100 smart antennas.

A90 GNSS-RTK smart antenna

1 cmRTK over UHF radio or cellular
L1 L2 L5GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
10 htwo hot-swap batteries
8 GBlogs raw GNSS up to 50 Hz

Features​

  • Compatible with RTX corrections by L-band
  • Bluetooth and Wi-Fi links to the controller, for a steadier connection
  • Works with Android and Windows data collectors
  • Web interface for set-up, status and logging
  • Swap one battery while the other keeps the receiver running

In the box​

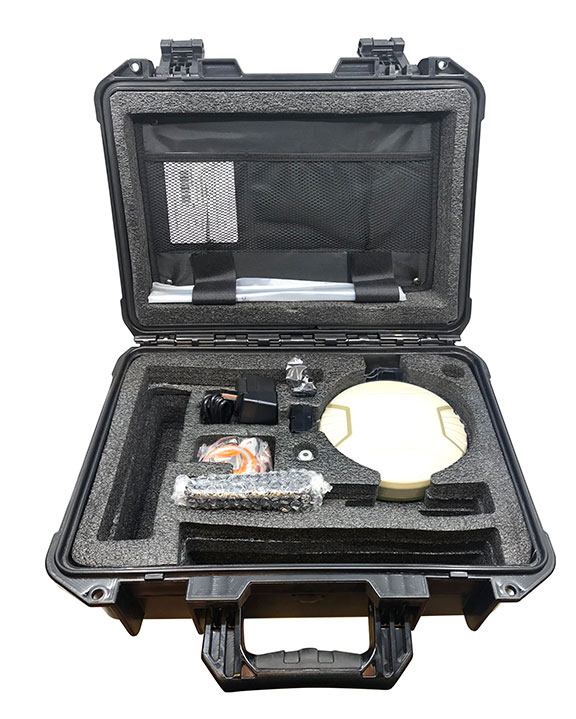

Rugged carrying case, UHF antenna (410 to 470 MHz), pole attachment for your data collector and a measuring tape, with space in the case for your controller.

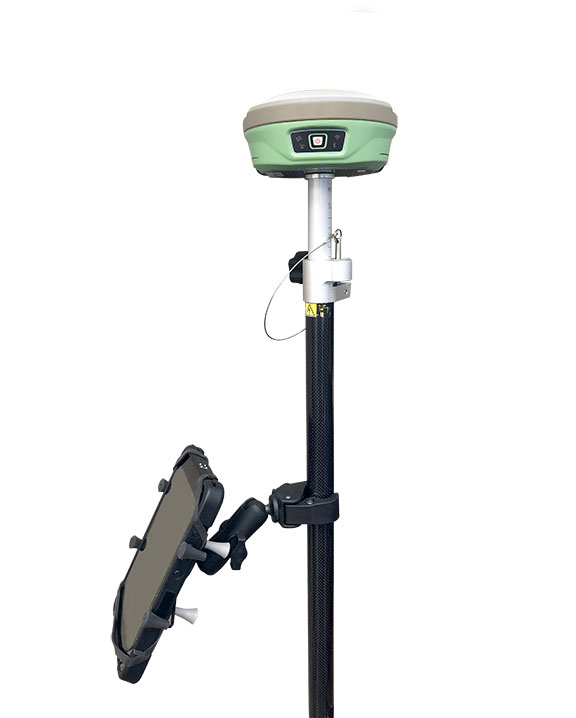

A90 on a survey pole

Compatible platforms

Questions​

How accurate is it? Standalone it is always submetre. In RTK mode, with NTRIP or P2P corrections in your area, it can reach 0.5 cm in real time. Results depend on the site: open sky does better than forest or tall buildings.

Can I use it with an Android or Windows data collector? Yes. Pair it with an SXtab RTK or SXpad, or your own device.

Specifications and the manual are on the manufacturer's A90 page.

Interested in the A90 GNSS-RTK Smart Antenna? We are Geneq's authorised distributor in the UK and can advise on the right kit, accessories and correction service for your work. Email us for a quote or see how to reach us.
